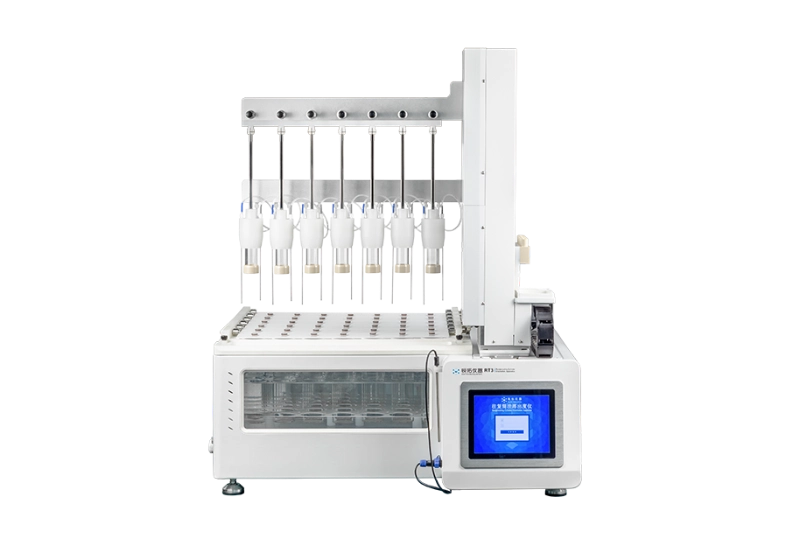

Аппарат с поршневым цилиндром RT3
Возвратно-поступательный цилиндр RT3 работает как передовое оборудование для испытаний на растворение, которое воспроизводит условия механического напряжения in vivo, обеспечивая точный контроль бикуренных движений. Устройство имеет автоматическую крышку сосуда, которая снижает потери на испарение, а также предлагает цельные водяные бани, которые способствуют эффективному нагреву. Пользователи могут изменять возвратно-поступательный ход, а также скорость и время погружения с помощью гибких настроек, доступных системе. Прецизионное фильтрующее устройство с высокой точностью фильтрует лекарственные вещества для получения надлежащих результатов испытаний. Устройство работает через 8,4-дюймовый сенсорный экран, который упрощает работу с ним, отвечая всем требованиям FDA 21 CFR Part 11.
Learn More
Get Free Quote
Download Sheet
- Efficient Anti-volatilization
- Low Operational Noise
- Flexible Reciprocating Parameterization
- Intimate Operation Design
-
Description
-
Using improved hydrodynamic forces allows the RT3 to excel in functional gummies and enteric tablet assessment as well as testing for soft capsules and orally disintegrating tablet systems. Lab testing of drug release becomes more realistic because the device emulates pH conditions found in digestive tracts.
The RT3 equipment delivers deterministic and exact dissolution outcomes because of its robust construction together with its exact engineering. The system delivers simplified workflow management which enzymes data integrity to fulfill regulatory requirements..
Features

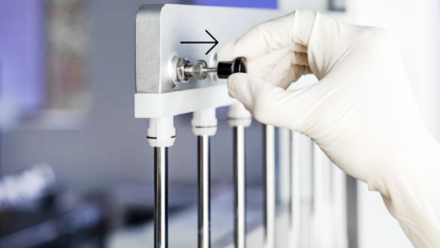

Co-axial Mounting Bracket
The coaxial split design makes it quickly to replace the reciprocating cylinder with other reciprocating holder.

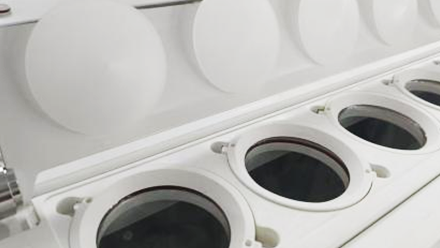

Automatic Dissolution Vessel Cover
The cover of dissolution vessel can automatically open and close, effectively reducing the evaporation loss of the dissolution medium.

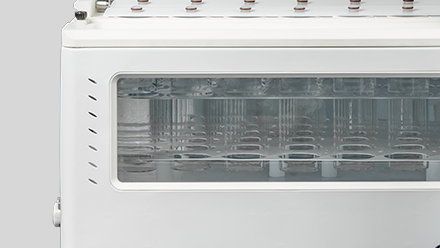

One-piece water bath
One-piece rounded corners water bath with no dead spots and can be thoroughly drained

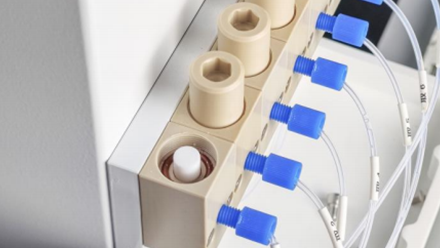

Filtration device
Various sizes of cylindrical filter elements can be fitted to filter out large particles of drugs that are not fully dissolved.

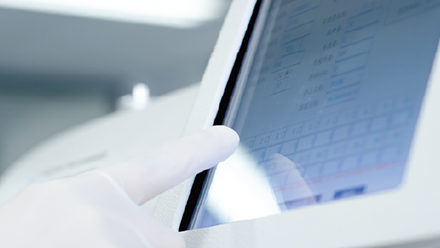

Flexible setting of experimental parameters
The reciprocating rate, reciprocating stroke, immersion time and drain time can be set.

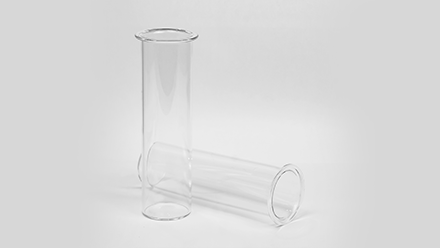

Wide range of dissolution vessel sizes
Available with 300mL or optional 1000mL dissolving cup for testing.

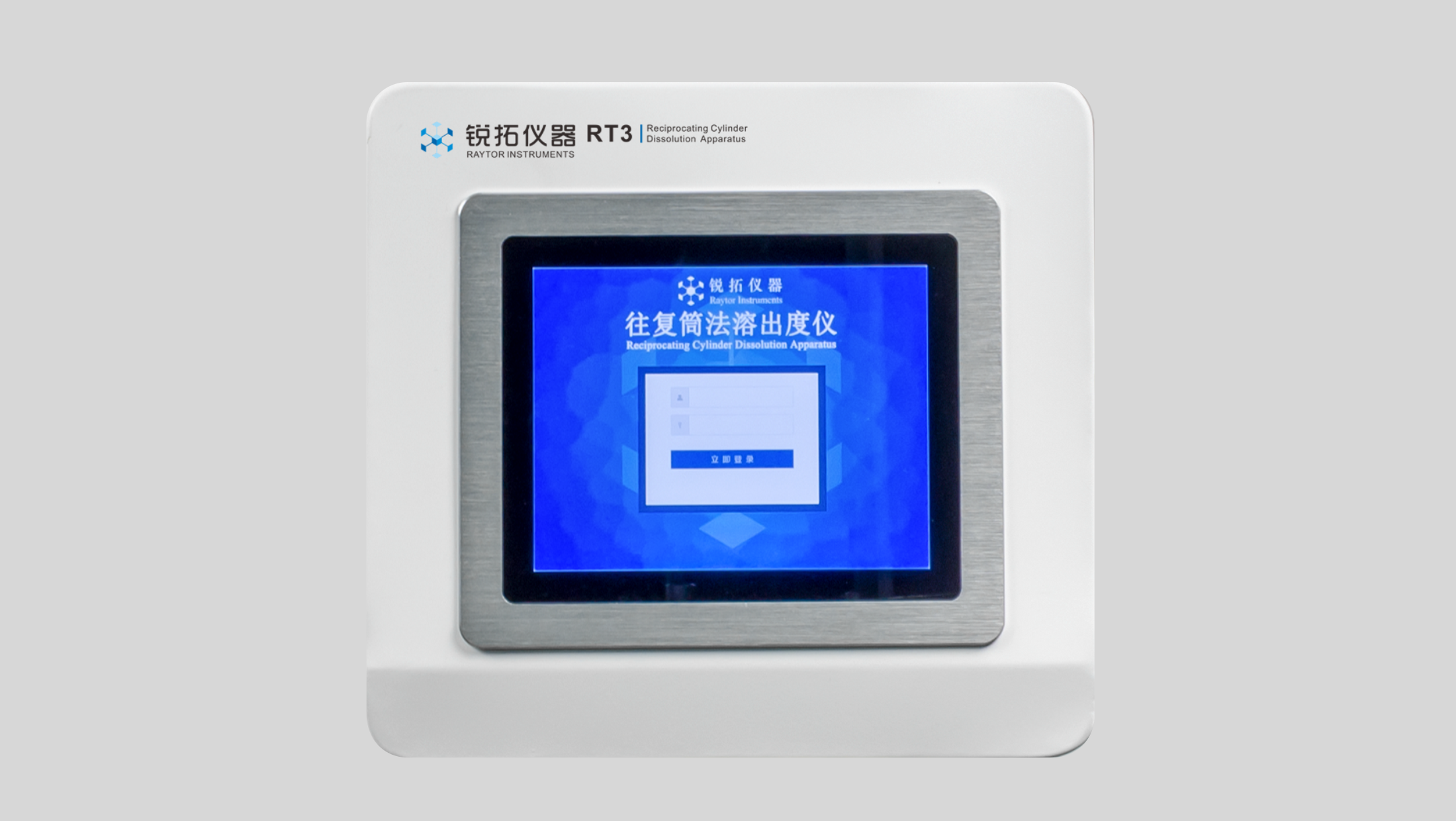

User-computer Interface
8.4-inch touch screen, preinstalled with the Raytor dissolution operating system, meeting the data integrity requirements.
Application
Compared to paddle and basket methods, the reciprocating cylinder method is able to provide more enhanced hydrodynamic forces by adjusting the reciprocating stroke and reciprocating frequency. It better simulates the mechanical stresses of chewing or in the body. It also supports changing the pH of the dissolution medium to simulate human gastrointestinal conditions.
-
Functional Gummies
-
Enteric tablets
-
Soft capsule
-
orally disintegrating tablets
Specifications
Product Brochure
Reciprocating Cylinder Dissolution System
|
Length ×Width× Height(Fully Raised): 80cm × 63cm ×100 cm |
Dissolution Vessel Row Number: 7 tubes ×6 Rows（300mL Stand Vessel） |
|
Dissolution System Level: ≤ 0.3° |
Shaft Verticality: ≤ 90°± 0.5° |
|
Temperature Control Range: Ambient Temperature ~ 50℃ |
Temp. Resolution: 0.1 ℃ |
|
Temp. Accuracy: ≤ ± 0.2℃ |
Vessels’ Temp. Difference: ≤ ± 0.5℃ |
|
Adjustable Range of Reciprocating Stroke: 2 ~ 10 cm |
Error of Reciprocating Stroke: ≤ ± 0.1 cm |
|
Adjustable Range of Reciprocating Rate: 4 ~ 60 DPM |
Error of Reciprocating Rate: ≤ ±5% |
|
Maximum Running Time: 600 (Hours) |
|
Operating System
|
Meet the requirements of FDA21 CFR Part 11 |
