RT612 12-позиционный тестер растворения
Тестер растворения RT612 представляет собой машину, состоящую из одного или двух методов управления для проведения точных 12-позиционных испытаний на растворение. Система соответствует требованиям ЧП (0931), УТП (711/724) и ЕР (2.9.3/4) по оценке фармацевтического контроля качества. Система осуществляет автоматическую доставку лекарств и работает с контролем скорости и температуры в режиме реального времени, а также с неограниченной емкостью хранения. Тестер может похвастаться усовершенствованной конструкцией, которая уменьшает турбулентность жидкости и повышает удобство использования.
Learn More
Get Free Quote
Download Sheet
- Individual Temperature Monitoring
- Real-time Monitoring of Vital Parameters
- Intelligent Dosing Device
- Optional Dual Drive
-
Description
-
The RT612 enables precise testing of all oral tablet forms while also handling topical patches as well as parenteral products and semi-solid dosage forms. It's smart dual-speed mode and intuitive operation streamline pharmaceutical analysis.
Features
Automatic preheating
With the automatic preheating function of medium, the instrument can be set to automatically start constant temperature water bath heating at the specified time.

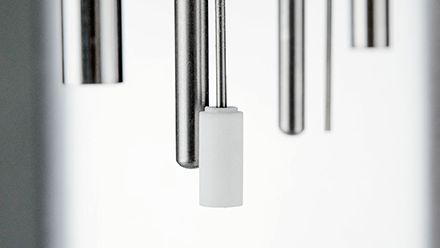

Convenient sampling
Non-resident sampling needles to reduce turbulence generation. The sampling needle can be automatically positioned according to the set solvent volume.

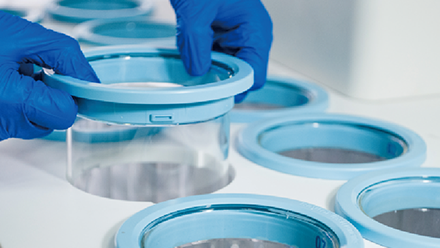

Covered Dissolving Cups
Dissolving cups are automatically centered for fast and accurate installation and greater durability.
Paddle basket co-axial design
Suitable for all kinds of regulations included in the test method. Not necessary to readjust the height of dissolution unit after switching dissolution method.

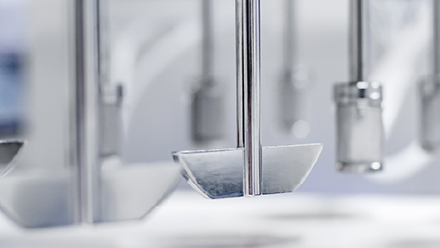

Smart dual speed mode
Smart dual speed mode is optional. The rotational speed of the 6 shafts on the right and left side can be set respectively.

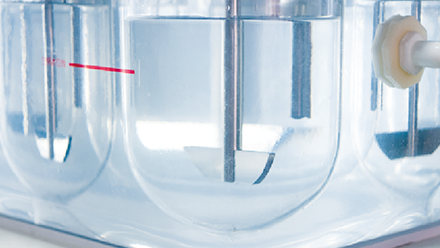

Round corner water bath
The one-piece, rounded corner design of the water bath ensures that there are no dead corners in the water circulation for heating and cleaning.
Automatic Synchronous Dosing
Eliminate the time difference of dosing. The time of dosing can be tracked.
Application
Basket and paddle methods are the most commonly used legal dissolution methods in national pharmacopoeias and were the first dissolution methods introduced into pharmacopoeias. They are mainly used for quality control (QC) of pharmaceutical products.
-
Oral Tablets
-
Patch
-
Semi-solid preparations
-
Injection
-
Intrinsic Dissolution Rate of API
Specifications
Product Brochure
General Dissolution System
|
Length ×Width× Height(Fully Raised)：92cm ×56cm ×96cm |
Dissolution Vessel Number: 12 |
|
Setting Range: 20-250 rpm (RPM) |
RPM Resolution: 0.01RPM |
|
Steady Speed Error: ≤±0.3RPM |
Temp. Accuracy: ≤±0.2℃ |
|
Temp. Resolution: 0.01 ℃ |
Level: ＜ 0.5° |
|
Vessel Verticality: 90°±0.5° |
Shaft Verticality: 90°±0.5° |
|
Centering Deviation: ＜ ±2.0 mm |
Depth Positioning Deviation: ＜ ±1.0 mm |
|
Shaft Wobble: ＜ ±1.0 mm |
Basket Wobble: ＜ ±1.0 mm |
Operating System
|
Meeting FDA21 CFR Part 11 |
