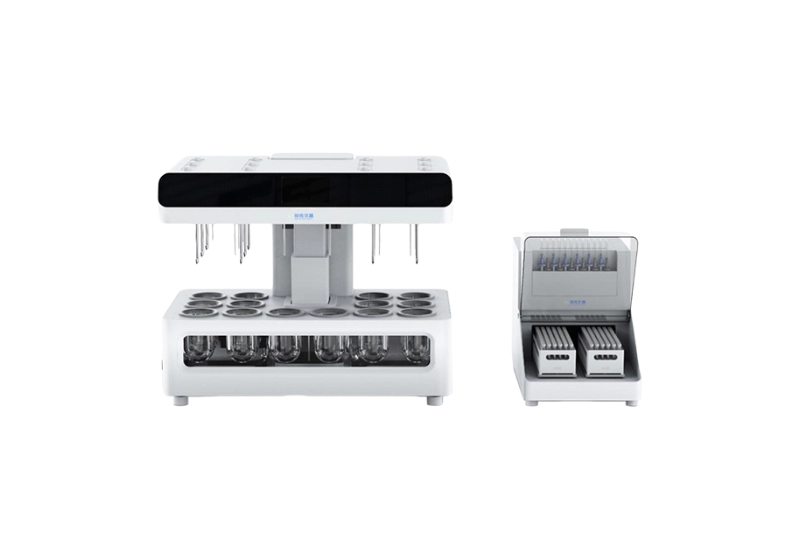

RT630-HT01 Оборудование для тестирования растворения лекарственных средств
Оборудование для тестирования растворения лекарственных средств RT630-HT01 работает как прецизионная двухмодульная автоматическая система отбора проб, которая удовлетворяет всем требованиям Chp (0931), USP (711/724) и EP (2.9.3/4). Устройство выполняет два автономных испытания на растворение одновременно, что позволяет использовать различные устройства и скорости, а также растворители и точки отбора проб для оптимизации результатов тестирования
Learn More
Get Free Quote
Download Sheet
- Dual-mode Dissolution System
- All-in-one Dual-mode Sampler
- Built-in Thermostat Rehydration Cups
- Innovative Design
-
Description
-
The device contains real-time monitoring technology together with independent temperature probes which precisely monitor the solvent temperatures in 12 separate vessels. The high-precision sampling pump teamed with automatic online filtering minimizes sampling inaccuracies and stops residual contamination from happening. Adjustments of both dissolution medium volume and rotational speed through the device's advanced design meet method requirements.
The RT630-HT02 Drug Dissolution Testing Equipment operates as a precise dual-module automatic sampling system which satisfies all requirements from Chp (0931), USP (711/724), and EP (2.9.3/4). The device runs two autonomous dissolution tests simultaneously which supports distinct devices and speeds and solvents and sampling points for optimized testing results.
Features
Dual-mode dissolution system
Two independent dissolution methods can be performed simultaneously (different devices, different speeds different solvents, different sampling points, etc.).

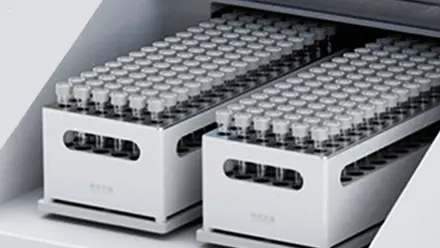

One-piece dual-mode sampler
Independent operation of left and right sample holders, supporting independent setting of sampling time.
Real-time monitoring
Independent temperature probe for 12 vessels, realizing independent monitoring and real-time display of solvent temperature.
Covered Dissolving Cups
Dissolving cups are automatically centered for fast and accurate installation and greater durability.

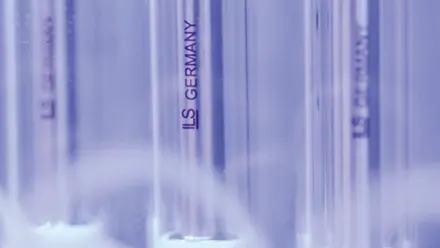

High precision sampling pump
Ensures more accurate sampling volume, precise sample concentration and no residue in the pipeline.

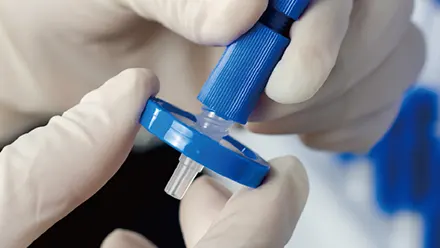

Automatic Online Filtering
Dual on-line filters can be installed, and the instrument can automatically realize embellish washing saturated filter.

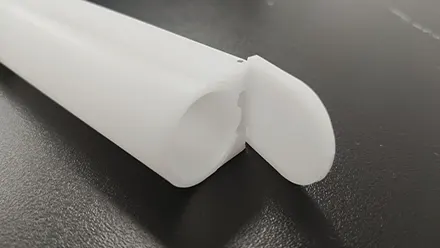

Automatic synchronized dosing
Eliminate the time difference of dosing, and dosing time can be tracked.

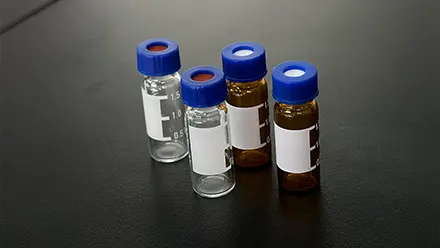

Automatic sample collection
Optimized injection needle with lower residue and higher corrosion resistance. Supports injection into 10mL tubes and pre-cut cap vials.
Innovative Designs
The volume of dissolution medium and rotational speed can be changed flexibly during the experiment according to the method setting.
Application
Basket and paddle methods are the most commonly used legal dissolution methods in national pharmacopoeias and were the first dissolution methods introduced into pharmacopoeias. They are mainly used for quality control (QC) of pharmaceutical products.
-
Oral Tablets
-
Patch
-
Semi-solid preparations
-
Injection
-
Intrinsic Dissolution Rate of API
Specifications
Product Brochure
General Dissolution System
|
Length ×Width× Height (Fully Raised): 95cm × 65cm ×82 cm |
Dissolution Vessel Number: 14 (12 dissolution levels+2 thermostatic refill levels) |
|
Setting Range: 20-250 rpm (RPM) |
RPM Resolution: 0.01RPM |
|
Steady Speed Error: ≤±0.3RPM |
Temp. Accuracy: ≤±0.2℃ |
|
Temp. Resolution: 0.01 ℃ |
Level: ＜ 0.5° |
|
Vessel Verticality: 90°±0.5° |
Shaft Verticality: 90°±0.5° |
|
Centering Deviation: ＜ ±2.0 mm |
Depth Positioning Deviation: ＜ ±1.0 mm |
|
Shaft Wobble: ＜ ±1.0 mm |
Basket Wobble: ＜ ±1.0 mm |
Automatic Sampling Workstation
|
Length ×Width× Height: 40 cm × 70cm ×50 cm |
Maximum Settable Sample Number: 36 |
|
Sampling Range: 1 ~ 20ml |
Minimum Sampling Interval: 4 minutes |
|
Maximum Working Time: 720 hours |
Sampling Precision: ≤±1% |
Operating System
|
Meeting FDA21 CFR Part 11 |
