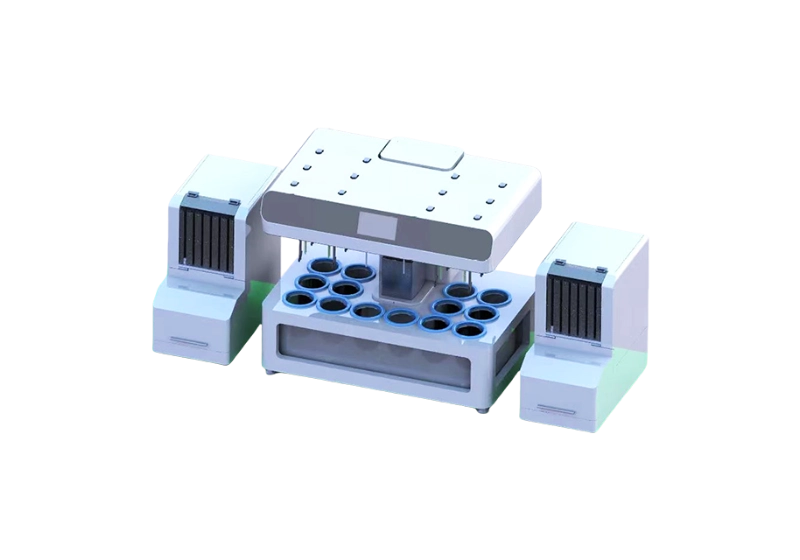

RT630-HT02 Тестер контроля качества растворения
Тестер контроля качества растворения RT630-HT02 представляет собой 14-позиционную двухмодульную систему растворения с автоматическим отбором проб. Он полностью соответствует требованиям испытаний в Chp (0931), USP (711/724), EP (2.9.3/4). Поддерживает два независимых испытания растворения одновременно, а также хранение и автоматическую замену вторичных фильтров в режиме реального времени. Отвечает требованиям высокоточных и высокоэффективных испытаний на растворение.
Learn More
Get Free Quote
Download Sheet
- Dual-mode Dissolution System
- Support for Storing Secondary Filters
- Automatic Replacement of Secondary Filters
- Built-in Thermostat Rehydration Cups
Features

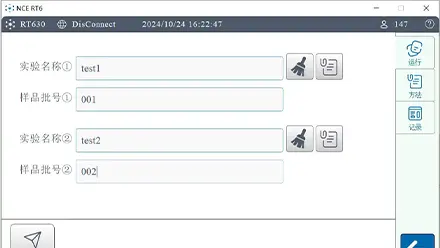

Dual-mode dissolution system
Two independent dissolution methods can be performed simultaneously (different devices, different speeds different solvents, different sampling points, etc.).

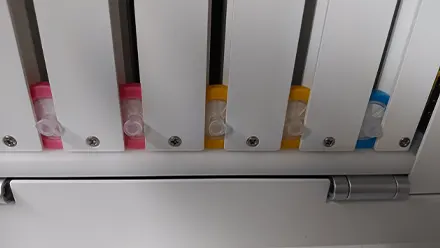

Intelligent Online Filtering
High-end autosampler that supports storage and online automatic replacement of secondary filters.

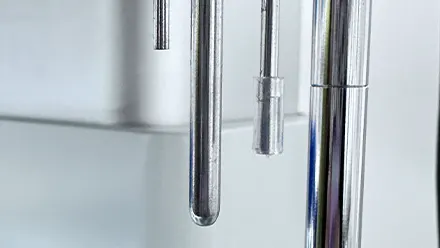

Real-time monitoring
independent temperature probe for 12 Vessels, realizing independent monitoring and real-time display of solvent temperature.

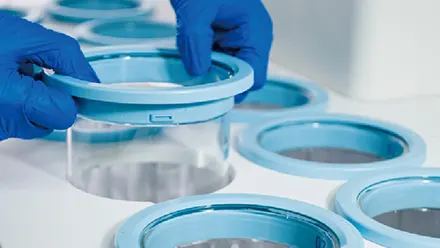

Covered Dissolving Cups
Dissolving cups are automatically centered for fast and accurate installation and greater durability.

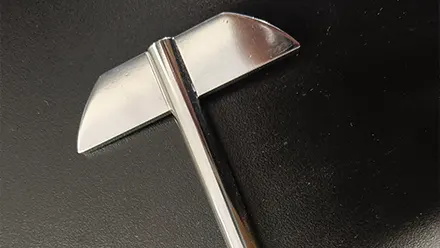

One-piece paddle shaft
One-piece paddle shaft design, adaptable to any kind of dissolution test components. Dissolution method switching without re-calibrating the height.

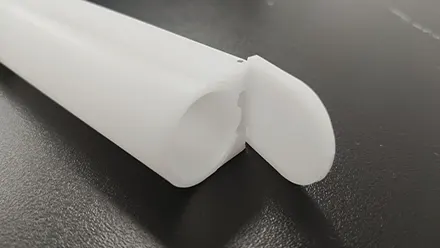

Automatic synchronized dosing
Eliminate the time difference of dosing, and the time of dosing can be tracked.

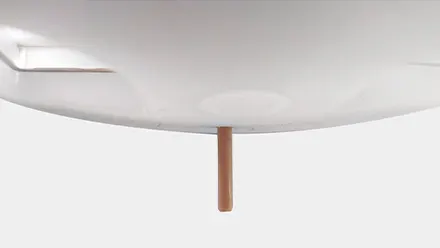

Non-Resident Sampling Needle
Automatic positioning of the sampling needle according to the dissolution test method and solvent volume. Non-resident sampling needle to minimize turbulence.
Innovative Designs

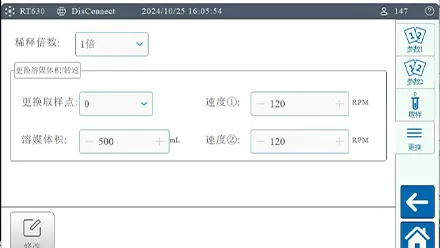

The volume of dissolution medium and rotational speed can be changed flexibly during the experiment according to the method setting.
Application
Basket and paddle methods are the most commonly used legal dissolution methods in national pharmacopoeias and were the first dissolution methods introduced into pharmacopoeias. They are mainly used for quality control (QC) of pharmaceutical products.
-
Oral Tablets
-
Patch
-
Semi-solid preparations
-
Injection
-
Intrinsic Dissolution Rate of API
Specifications
Product Brochure
General Dissolution System
|
Length ×Width× Height (Fully Raised): ~95cm × 65cm ×82 cm |
Dissolution Vessel Number: 14 (12 dissolution levels+2 thermostatic refill levels) |
|
Setting Range: 20-250 rpm (RPM) |
RPM Resolution: 0.01 RPM |
|
Steady Speed Error: ≤±0.3 RPM |
Temp. Accuracy: ≤±0.2℃ |
|
Temp. Resolution: 0.01 ℃ |
Level: ＜ 0.5° |
|
Vessel Verticality: 90°±0.5° |
Shaft Verticality: 90°±0.5° |
|
Centering Deviation: ＜ ±2.0 mm |
Depth Positioning Deviation: ＜ ±1.0 mm |
|
Shaft Wobble: ＜ ±1.0 mm |
Basket Wobble: ＜ ±1.0 mm |
Automatic Sampling Workstation
|
Length ×Width× Height: 32 cm × 65cm ×61 cm(single-unit) |
Maximum Settable Sample Number: 36 |
|
Sampling Range: 1 ~ 20ml |
Minimum Sampling Interval: 4 minutes |
|
Maximum Working Time: 720 hours |
Sampling Precision: ≤±1% |
Operating System
|
Meeting FDA21 CFR Part 11 |
